Monday, 12 July 2010

The "Copenhagen Left" and merging of cyclists with cars turning right: Dangerous and inconvenient junction design in Denmark.

I've mentioned before that I'm less than enthralled with what I've seen of Copenhagen's cycling infrastructure. Here's another example - the "Copenhagen Left".

It's explained thus:  "As a general rule in Denmark, cyclists are required to make a wide left turn where they cross the perpendicular street and wait to cross the original one. The space between the crosswalk and bike lane becomes a waiting area for the cyclists turning left. Those who are continuing straight are supposed to stop before the crosswalk.". Two-stage turns are neither efficient nor safe for cycling.

Going straight on can be hazardous as well...
This video shows another similar situation. The cycle path becomes a right turn lane for all vehicles when it comes to junctions. To combine cyclists travelling straight on with right turning drivers in one lane is to create conflict. It's a dangerous design:

A narrow cycle-path with a dangerous kerb at the right and trees too close by on the left merges with motor vehicles going right at the junction. People praise this ?

Sadly, it's not unique. Here's another example.

Copenhagenize recently covered an improvement to this, but it was not to give cyclists more space, or to make left turns more efficient or safer. Rather, LEDs have been used to try to warn drivers of the danger that they pose to cyclists:

Much the same situation as before, but with added flashing lights ? If the existing situation was good enough then the lights would not have been tried. This is a story of failure, not of success. Instead of this band-aid measure, why didn't they simply copy a much superior and more convenient design of junction ?

Nice flashy video, but why ? Is this really the best they can do ? This is not good infrastructure. It encourages cyclists to be on the wrong side of turning motor vehicles, increasing conflict. Most deaths of cyclists in London, where driving and cycling is on the left hand side of the road, are due to cyclists on the left hand side of trucks being crushed as the truck turns left.

The same can happen in countries where it is normal to drive and cycle on the right. It appears that the infrastructure in Copenhagen is designed such that it actually encourages these conflicts rather than avoiding them.

What are actually needed are junction designs which separate cyclists in time as well as space, and that's what we have here in the Netherlands. If a cyclist has a green light to go straight on, then a driver waiting to turn right at the same traffic lights will have a red. The same goes for cyclists turning left and drivers going straight on. The conflict is removed, and safety is greatly improved at the same time.

In the most extreme cases, cyclists get a green simultaneously in all directions, while motorists have a red light in all directions. Cycle paths in the Netherlands are designed to offer directness and a high degree of safety while minimising conflicts between drivers and cyclists.

Don't copy Denmark
Denmark's cycling modal share has
been in decline since 1992
Conditions in Denmark are not the worst in the world. Danish infrastructure is often better than much of what you find in Germany and of course it is better than what you usually find in other countries which have far lower cycling rates. However, Danish infrastructure is far from ideal. Denmark not invested enough to support the cycling modal share that they once had and the result has been twenty years of decline in cycling in Denmark. Is a declining cycling modal share the future you want to see ? If not, don't copy Denmark !

I think it's about time that infrastructure like this stopped being touted as advanced. It is quite similar to what the Dutch used to do twenty years ago, but most of that has been replaced. The replacement of inadequate infrastructure like this is what has helped the Netherlands to avoid the crash in cycling which Denmark has experienced.

If you're looking for a cycling "role model", The Netherlands is the country which has achieved most and it is the country that you should refer to for best practice.

Update January 2011
The Danes are still building new junctions like this, which put cyclists on the right of right turning vehicles and give right turning drivers and straight on cyclists green traffic lights at the same time. They're also still trying to ameliorate the problems that this causes with signs. I know because Denmark is again making publicity out of it as if it's a good idea !

Hopeless. Why not copy newer designs, such as this ?

Update August 2013
Southampton in England is copying this design. As an extra twist, they've branded it as Dutch. This will lead to injuries and deaths of Southampton cyclists.

Update November 2013
It was recently pointed out to me that the Danes have finally woken up to the fact that their merging of right turning vehicles with cyclists going straight on has led to seven fatal accidents this year.

This is why it makes no sense at all for other nations to copy Danish designs and makes a lot of sense for the Danes to copy much safer Dutch designs which avoid this conflict.

Sadly, New Zealand now seems to have picked up on the Copenhagen Left idea. They call it a "Hook Turn". The change of name makes it no safer nor more convenient.

The "Copenhagen" left isn't even Danish
While this type of junction has been much hyped in the last few years as a Danish innovation, it's actually nothing new at all.

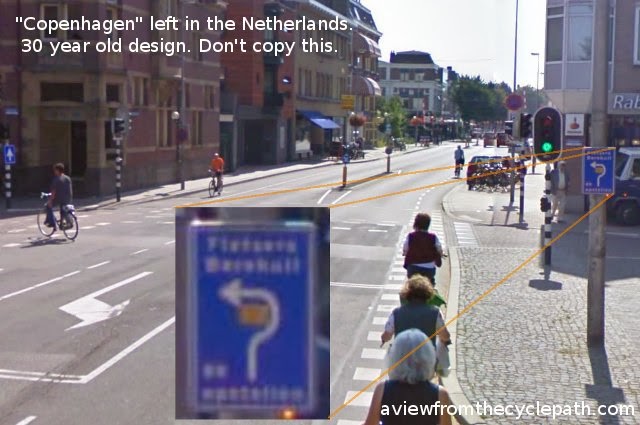

If you look hard enough, you can still find examples of this in the Netherlands, as seen in the photo on the right (this location, thanks to Bertram Bourdrez). In this country such junctions are not known as "Copenhagen left" junctions and they're not the subject of hype. This type of thing is simply old fashioned.

Just because such infrastructure can be found in the Netherlands, that doesn't mean it works any better here than it does elsewhere and it certainly doesn't mean it should serve as an example to planners elsewhere. To achieve the best result, copy the best examples.

Note that the blogger I referred to first also says that Danish cycle paths are 5 feet wide. That's 1.5 m, which is rather less than the 2.5 m (8 feet) minimum for single direction cycle paths in the Netherlands. What's more, they are separated merely by a kerb instead of the 1.5 m separation which is the aim in the Netherlands, though sometimes not quite achieved. Unfortunately, with infrastructure like this being presented as desirable, the problems are spreading in multiple places. The Netherlands remains a much better model if you want to see successful bicycle policy. Please read our examples of what really works,

24 comments:

christhebull said...

I believe the left turning manouvre described is known as a "hook turn", and is the standard manouvre on motorbikes in Taiwan. I can see its use where a left turn would normally be prohibited (or a right turn in the UK) . Having said that, having the cycle lane turn into a right turn lane means that not only do you either have to sit behind or filter past turning vehicles, (ideally on the outside, because they're turning) but that turning vehicles can cut you up, which seems to be a major hazard in London and elsewhere.

Sirius7dk said...

When you are performing a left turn as described in the first illustration and you are waiting in the left turn waiting area you can legally cross the road for red if there are no vehicles coming from or towards the direction you just came from. The problem with this is that in heavily used junctions there will always be traffic so you end up waiting for green anyway.

If it is smaller junctions almost all cyclists will turn left the same way as a car would do it.

Rasmus Jensen

John in NH said...

Its interesting to see that places in NYC are adopting this "mixing zone" that it seems some Danish planners think "first class" I have seen this idea talked about multiple times and it does not make me comfortable. Yes designating this area is better than what we have in most of the country, but I think places are striving for the wrong thing by holding the second best cycling infrastructure as the best it could be.

Anonymous said...

I find it surprising that many countries feel the need to 're-invent the wheel' when it comes to infrastructure for cyclists - I'm not aiming this at Denmark particularly but it appears they're doing something here that has been tried and rejected elsewhere as 'sub-optimal'.

The result of this is sub-standard separated infrastructure and sub-standard integrated infrastructure. Freewheeler has an excellent post on this here.

Bad on-road conditions encourages no new cyclists and the poor segregated infrastructure gives ammunition to the 'vehicular cyclists' in their argument against against separation.

They do the same here in Australia, pointing out, helpfully, that, "we do things differently here; this is not Europe", and other unhelpful jibes; while producing rubbish bike lanes on the roads with a bit of paint (green is the preferred colour here).

Why don't we all save some time & money and look to where it is being done well (ie. NL), backed by solid data and go from there... is it really that hard!?

Regards,

Paul Martin
Brisbane, Australia

anthony said...

you know, when people are not following good examples, there is an underlying unstated reason. the only one i can think of to prevent other countries following the netherlands is that it is copyright. is it? don't laugh. a lot of these things are tendered to private designers, and they will copyright their efforts.

anna said...

Similar here in Vienna. Indirect left turns for cyclists and pedestrians. Most of the time there is not even enough space to wait, and one ends up blocking cyclists that want to go straight on..

However, I suppose it's not so bad in Denmark, as there are generally more cyclists on the road than in Austria. The view to the cycle path is not obstructed either. So probably not that great, but not really unsafe (as compared to countries where people driving cars don't expect cyclists to appear beside them when they want to turn right).

David Hembrow said...

Anthony: In this case I don't think it has anything to do with copyright. And frankly, if, say, British councils were somehow forced to employ Dutch contractors they would save a fortune given the quality built at a price here.

Anna: Mikael says that Vehicles turning right and hitting bikes is the most common form of accident for cyclists in Copenhagen.

I think it's odd that they're not taking more comprehensive steps against these problems.

Anonymous said...

I've seen that kind of arrangement in the Netherlands exactly once: at the Nagtegaalstraat/Maliebaan junction in Utrecht, complete with non-standard sign outlining the route, see Google Street View.

It's a bit awkward, but the left turn in question is a low-traffic manoeuvre and Maliebaan is such a landmark street that it'd probably do more harm than good to fix it.

However, I must turn out that the Dutch solution for high-traffic intersections takes longer to cross since you have to wait at the lights twice (except for a limited number of intersections where you get simultaneous green phases.)

townmouse said...

It's interesting about the lights sometimes being green in all directions for cyclists and red for cars. You can't imagine such a thing for bikes here but similar setups are cropping up all over the UK for pedestrian crossings (Glasgow has a lot of these) where they can cross a junction diagonally in one go rather than having to wait for two cycles of lights (whereas in other parts of the UK pedestrians have to wait for two cycles just to cross one road. Grr). In fact, a lot of the best infrastructure we have here is for pedestrians - can you imagine something as labour intensive as a lollypop lady being offered to child cyclists? yet it would solve a lot of the recent angst about children cycling on their own to school. The best infrastructure we have in Southwest Scotland - completely separated from cars, direct and well signposted, well lit, well surfaced and kept swept - is shared use and, as you might expect, mainly used by pedestrians.

Perhaps this is the way we need to go as cyclists in the UK - join forces with pedestrians because while cyclists are few (and divisive) practically everyone's a pedestrian, and nobody complains about them running red lights...

David Hembrow said...

Anonymous: Thanks for your post. Nice to see an exception.

As you say, the Maliebaan is somewhat special. It's the site of the first cycle path in the Netherlands dating back to 1885.

Not all high traffic intersections require you to cross twice to make a left turn.

Jean-Christophe said...

I do agree with your view.
But, you should understand that for some of us, even the not-so-well-thought Danish cycling infrastructure, or even the German one is light-year in advance compare to our local one!
You should pass by Toulouse, France and see how unfortunate we are down here! Although in 9 years things have vastly improved.
It's all a matter of perspective :-)

Stefan Warda said...

Since more than ten years I visit Copenhagen several times a year and I am very familiar with the infrastructure for cyclists in the Danish capital.

I don´t see a big disadvantage to turn left indirectly like in Copenhagen. In general the rules for cyclists are very easy in Copenhagen. If there are cycle tracks ore cycle lanes they are always on both sides and cyclists have to use them on the right side on the street. If there are no cycle tracks or lanes cyclists run on the road lanes. Cyclist don´t use the sidewalks, they never run on the wrong side of the street. At intersections cyclist turn to the left indirectly. They never have to stop and and use a push-button to get a green signal.

In Amsterdam I have noticed many cyclists on the wrong side of the street even on very narrow cycle tracks hindering other cyclists using the cycle tracks on the right side. At several intersections there are push-buttons.

And still many cycle tracks are built with red clinker stones on an undercoat of smooth sand, for example in the new quarter of Ijburg. Even now after only a few years the stones are no more even, the surface isn´t nice to cycle. Copenhagen cycle tracks are always designed with smooth asphalt.

Many cycle tracks are built on one side of the street for cycle traffic in both directions. As far as I know this from bad infrastructure in Germany this leads to cycling on the wrong side even on those cycle tracks where it is not allowed, as mentioned above. But cycling on the wrong side (left side) causes more accidents with car traffic than cycling on the right side.
http://www.youtube.com/watch?v=6YEre8Rsur8


And even in Amsterdam I know cycle tracks along main roads where cyclists can not pass one another. Old-fashioned cycle tracks still exist and do not allow to pass slow cyclists.

Typical for the Netherlands are missing storage surfaces at intersections. If you pass a sidestreet the cyclists coming from the sidestreet stay in your way waiting at the red signal. This never happens in Copenhagen.
http://www.youtube.com/watch?v=UlQYP4WN-5w

David Hembrow said...

townmouse: I think there is something in the idea of cyclists getting together with pedestrian groups in the UK. However, you have to be careful. More low quality "shared use" is not what the UK needs.

Jean-Christophe: I do know what you mean, after all I came from Britain, where almost anything is possible.

How does Toulouse compare with Paris ?

neil said...

> nobody complains about them running red lights

That's because in the UK red lights do not apply to pedestrians. Traffic lights are to control traffic and do not apply to pedestrians. Pedestrian lights are only advise for pedestrians, to let them know when the traffic has been stopped.

jonbendtsen said...

@Stefan Warda:
There can be left turning problems if there are so many bicyclists that those turning left blocks those going straight. A good example of this is http://maps.google.com/maps?f=q&source=s_q&hl=en&geocode=&q=Dronning+Louises+Bro,+K%C3%B8benhavn,+Danmark&sll=37.0625,-95.677068&sspn=55.192325,67.5&ie=UTF8&hq=&hnear=Dronning+Louises+Bro,+1360,+K%C3%B8benhavn,+Denmark&ll=55.686255,12.565532&spn=0.000607,0.00103&t=h&z=20 where lots of bicyclists arrive from the lower corners, and lots of them go out of the top left corner.

Another problem is that cyclists going straight do not stay behind the white line, but continue into the waiting area for cyclists turning left. But as i can see in the 2. video you link to, dutch cyclists do also block each others path. And so do motor drivers.

When people drive, car/bicycle/... they want to go to their destination, not stop. And everybody else is just in their way. You see this in every country around the world.

In Amsterdam I met crossings where too many waiting cyclists would block those going straight and those turning right. And they had pushed the button to get green.
http://maps.google.com/maps?f=q&source=s_q&hl=en&geocode=&q=Amsterdam,+The+Netherlands&sll=37.0625,-95.677068&sspn=55.192325,113.818359&ie=UTF8&hq=&hnear=Amsterdam,+North+Holland,+The+Netherlands&ll=52.351488,4.828022&spn=0.00135,0.003473&z=19&layer=c&cbll=52.351374,4.827689&panoid=KSmGB8h1XTQ3waHIuXizrg&cbp=12,179.93,,0,5

Asphalt is so nice. I hate that place in Lyngby that David linked to http://www.copenhagenize.com/2010/07/lyngby-cycle-track-design.html I think it is a bad example.

Adrian said...

There's a very simple reason why countries do not choose to copy the Dutch style of bike infrastructure - political opposition by motorists. Building Dutch-style cycle infrastructure would have a serious negative impact on motorists in the short-term, and that's enough to kill it in countries with lower levels of cycling than the Netherlands.

Matt Nicholas said...

How about this one in Rotterdam? Have a pan around the junction. There's those cycle signals half way across but I'm pretty sure they run in sync with the traffic signals for that road.

Never been too sure what you are supposed to do here?

Stefan Warda said...

@jonbendtsen

Here an example from Amsterdam, where cyclists block each others path:

http://maps.google.co.uk/maps?f=q&source=s_q&hl=en&q=Haarlemmerplein,+Amsterdam,+Noord-Holland,+The+Netherlands&sll=51.918926,4.463163&sspn=0.002991,0.010568&g=Rotterdam,+South+Holland,+The+Netherlands&ie=UTF8&cd=1&geocode=FWxUHwMdhIRKAA&split=0&hq=&hnear=Haarlemmerplein,+Amsterdam,+Noord-Holland,+The+Netherlands&ll=52.385145,4.881177&spn=0.00037,0.001321&t=h&z=20&layer=c&cbll=52.385114,4.881338&panoid=MTUSYhAlLVDbpx0cMFOVjQ&cbp=12,307.41,,0,5

http://maps.google.co.uk/maps?f=q&source=s_q&hl=en&q=Haarlemmerplein,+Amsterdam,+Noord-Holland,+The+Netherlands&sll=51.918926,4.463163&sspn=0.002991,0.010568&g=Rotterdam,+South+Holland,+The+Netherlands&ie=UTF8&cd=1&geocode=FWxUHwMdhIRKAA&split=0&hq=&hnear=Haarlemmerplein,+Amsterdam,+Noord-Holland,+The+Netherlands&t=h&layer=c&cbll=52.385181,4.881006&panoid=jAHJCtuvw6E-9rOfvI4xKg&cbp=12,74.1,,0,5&ll=52.385181,4.881008&spn=0.00035,0.001321&z=20

Even Dutch infrastructure has mistakes and risks.

Stefan Warda said...

@jonbendtsen

Here a place in Amsterdam where cyclists always have a red light if they do not use the push-button:

http://maps.google.co.uk/maps?f=q&source=s_q&hl=en&q=Haarlemmerplein,+Amsterdam,+Noord-Holland,+The+Netherlands&sll=51.918926,4.463163&sspn=0.002991,0.010568&g=Rotterdam,+South+Holland,+The+Netherlands&ie=UTF8&cd=1&geocode=FWxUHwMdhIRKAA&split=0&hq=&hnear=Haarlemmerplein,+Amsterdam,+Noord-Holland,+The+Netherlands&ll=52.384833,4.88353&spn=0.005867,0.021136&t=h&z=16&layer=c&cbll=52.384825,4.883293&panoid=oDd7JL6Y8y_f70TnTl84gA&cbp=12,255.68,,0,20.75

I don´t know any place like that in Copenhagen.

anna said...

David: Thanks for pointing that out, I didn't know.

David Hembrow said...

Stefan: There are 5000 km of on road cycle lane and 27000 km of segregated cycle path in the Netherlands. That's about a quarter the length of segregated path as the length of the roads in the country. Not all of it was built yesterday. As a result, it is not really all that difficult to find examples of old provision which do not meet current standards.

This is particularly true in Amsterdam and Rotterdam. Amsterdam is not the place to look to see a showcase of best practice for this country. That's a good part of why Amsterdam features so infrequently on my blog and also a good part of why I don't live there. The lack of quality of some of the provision is reflected in the lower rate of cycling in Amsterdam compared with many other Dutch cities. In particular, Amsterdam has the lowest rate for cycling to school for first year secondary school students (only 53%. This age group is important as it's the first time that children are expected to cycle a longer distance to school) anywhere in the country, in part due to the relative lack of subjective and social safety of Amsterdam.

There is a key difference between the older and less good infrastructure which you highlight in Amsterdam and the junctions which I highlight in Copenhagen. No Dutch person would show the occasional bad examples of old provision as being good. Everyone knows that the old infrastructure is less good. A lot of it either has already been replaced or is planned to be replaced, and modern standards are much better. On the other hand, examples of bad and mediocre infrastructure from Copenhagen are current designs and being promoted internationally as aspirational. Don't believe the hype. This provides a very dangerous example for the world to copy.

Incidentally, that example that you give of somewhere that Amsterdam cyclists have to stop and press a button: Do you know from personal experience that this is the case ? It's very unusual if it does not have a loop which detects bikes.

Your blog is interesting. I can't say I'm terribly impressed with either the old or the new in Hamburg. Hopefully at some point the local government will see sense and make conditions tolerable enough that Hamburg's cycling rate grows past 13%.

The standard of provision is proportional to cycling rate, and this is one of the major reasons why NL's cycling rate is so far ahead of the rest of the world.

jonbendtsen said...

@Stefan Warda
There are also places in Copenhagen where you have to press a button to get over, but they are rare. I have found 3, and they are all where a recreational bicycle path crosses a major road.

Andrew Russ said...

Three years on and apparently Southampton Council are trumpeting one of these junctions as the very latest thing, pioneering, even - and something which will attract cyclists.

http://www.nce.co.uk/news/transport/pioneering-new-junction-gives-a-boost-to-cycle-safety/8656417.article?blocktitle=News-In-depth&contentID=1072

David Hembrow said...

Andrew: I think the junction you're referring to is one that I wrote a little about this year in a blog post. It's really rather sad that Southampton is claiming so much for something so very poor.

In any case, if the city wants to attract cyclists, it needs a lot more than one junction. The most important result from Dutch experiments in the 1970s was finding out how much it took to make people want to cycle. To achieve their state aim, the entire city would have to be covered with high quality cycling infrastructure.

You may also be interested in a blog post which points out other examples of "Dutch" infrastructure which should not serve as inspiration.

We offer cycling study tours here in the Netherlands on which we show politicians, planners and campaigners both the best practice as well as demonstrating why less good things don't work.
